Name: RK3528 Reliable Digital Signage Indoor Media Player Box for Advertising
Brand: Shenzhen HDFocus Technology Co., Ltd.
Availability: InStock

Home Products Hot Selling

RK3528 Reliable Digital Signage Indoor Media Player Box for Advertising

Product Details:

Contact Now

Detailed Product Description

原产地:	Guangdong, China	品牌:	HDFocus
型号:	HD-DC3528	尺寸:	RK3528
材质:	铁, 金属	使用场景:	教育, 医疗, 餐厅/酒店, 加明, 商务风, 商店/超市, 家庭影院
Prodcut:	数字标牌媒体播放器	CPU:	四核ARM Cortex A53 2.0ghz CPU
GPU:	ARM Mali-G450支持OpenGL ES1.1/2.0，OpenVG1.1	主板:	Rockchip RK3528
RAM:	DDR4 2g (可扩展至4g)	ROM:	Nand闪存32g

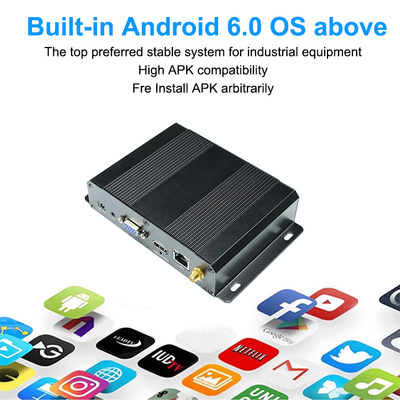

操作系统:	Android操作系统13	程序:	支持触摸和非触摸程序
数字标牌软件:	CDMS、GTV、ADPE、EzPoster

Specification

Model	HD-DC3528

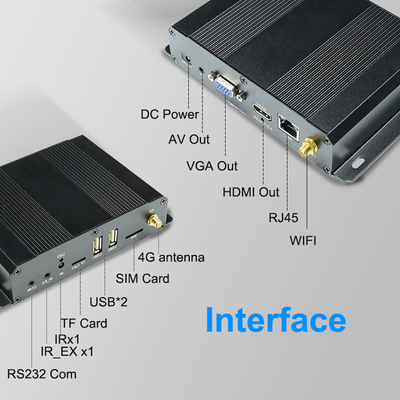

Networking	RJ451, WIFI1
4G Module	4G module*1 (optional) MINI PCI-E 52P
USB	USB2.01 HOST, USB3.01 OTG
SIM card input	SIM Card input*1
Net Dimension	136124.432mm
Net Weight	0.5KG
Input Power	12V/3A
Working Temperature	0℃~40℃

Product Description

Main Features

*High end metal alloy design, industrial level;
* All in one Media Player, user friendly;
* Ultra high output resolution up to 3840*2160@60Hz;
* Support 4G and WIFI work at one time;
* Easy to operate, can use PC software/Cloud to manage device;
* Adopt quad core contex A53 cpu RK3528, frequency up to 2.0GHz;
* Highly stable performance, adding unique technology to hardware and

software to achieve high stability;
* Support upload background picture;
* Support online edit program and release program;
* Support infrared receiver and working status indicator;
* No fan design, lower the maintenance cost;
* Efficient and stable embedded design;
* Support automatic reset and self repair;
* Support video, pictures, text, audio and other formats of the network to

download and decode playback;
* Support four levels playback priorities;
* Support immediate release urgent information or notice;
* Support for automatic download file updates, download checksum;
* Support freely split screen display;
* Support for automatic NTP time;
* Support timer switch on and off of the media player;
* Support for the transparency of the text settings;
* Support for smooth subtitles playback;
* Built in WIFI and RJ45, can customize 4G;
* Support vertical screen application;
* Centralized control, centralized management, no need to change card or

insert card, realize different places, different audiences, different time
period can play different information content;
* Software upgrades can be operated remotely by networking upgrade

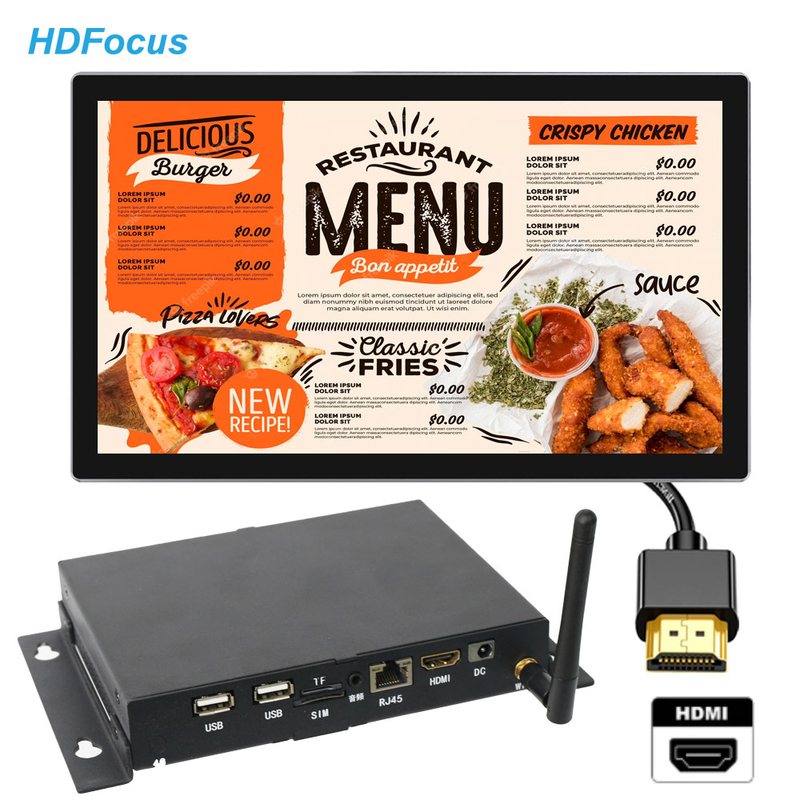

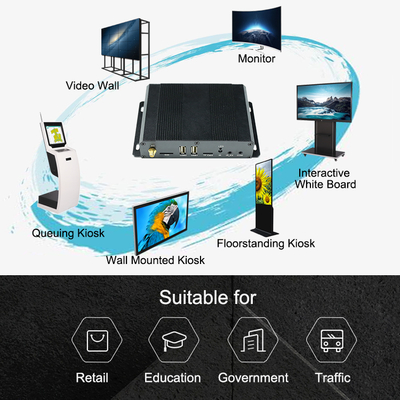

As the enterprise level digital signage player powered by HDFocus一HD-DC28, it can easily turn any ordinary TV, monitor or screen into highly versatile digital signage display. Featuring 4K display, reliable network and scalable I/O interfaces, it is your perfect choice for any digital signage project large or small, complex or simple. With industrial durability and outstanding performance, HDFocus一HD-DC28 can be confidently deployed to digital signage application fields like retail, restaurant, transportation, corporation, public service and more.

Main Functions of Digital Signage Softwre HD-DS:
※ Terminal media player management 1. Terminal configuration: import terminals, modify terminal information, set the terminal group and so on 2. Terminal monitoring: real-time monitoring terminal's networking status, download progress, version information, operation information, etc. 3. Remote upgrade: Upgrade the terminal firmware remotely ※ Resource management 1. Material management: media material upload, preview, classification, delete and other functions 2. Pre-download management: the future may need to play the material predownload 3. Scene production: the production of reusable scenes ※ Program management 1. Program Editing: Program creation, editing and distribution 2. Release management: manage the released programs ※ System settings 1. Screen parameter configuration: According to the screen specification book preparation screen parameters
