Name: 27-Inch Self-Service Fast Food Payment Kiosk Touch Screen Cinema Ticket Vending Machine With SDK Function
Brand: Shenzhen HDFocus Technology Co., Ltd.
Availability: InStock

Home Products Hot Selling

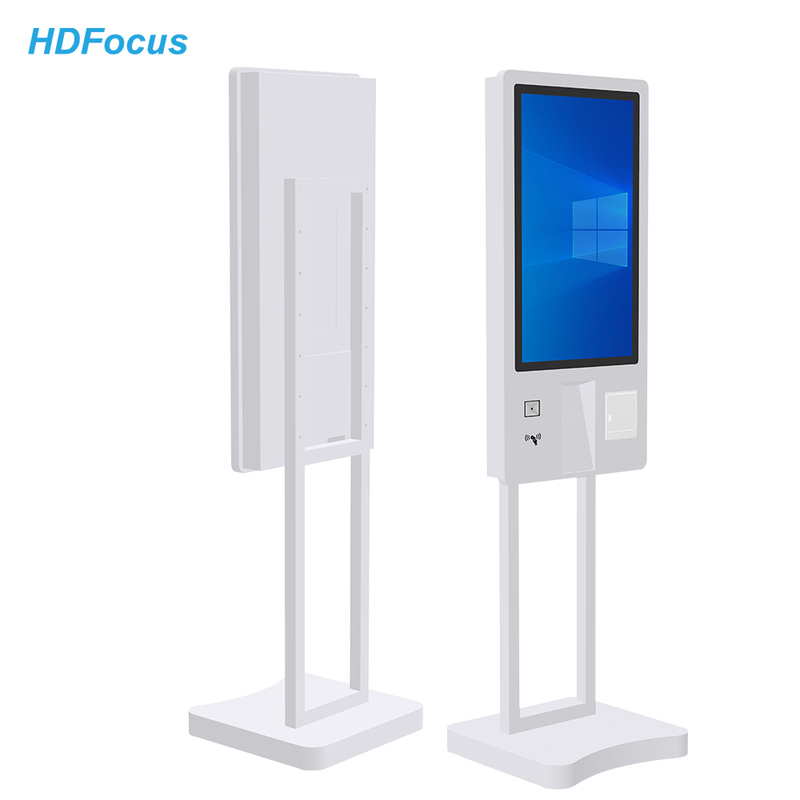

27-Inch Self-Service Fast Food Payment Kiosk Touch Screen Cinema Ticket Vending Machine With SDK Function

Product Details:

Contact Now

Detailed Product Description

原产地:	Guangdong, China	品牌:	HDFocus
功能:	SDK	显示面板:	27"
显示比例:	16:9	颜色:	16.77m颜色
显示区域:	477 * 268mm/598 * 336mm/698 * 393mm/941 * 529mm	分辨率:	1920*1080
亮度:	350cd/m2	对比度:	≥ 1000:1
视角:	178 ° 左右，上下	点距离:	0.282(H)* 0.282(V) 毫米

Product Description

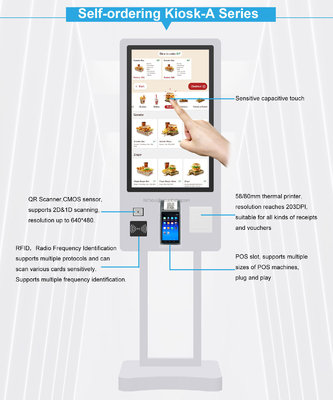

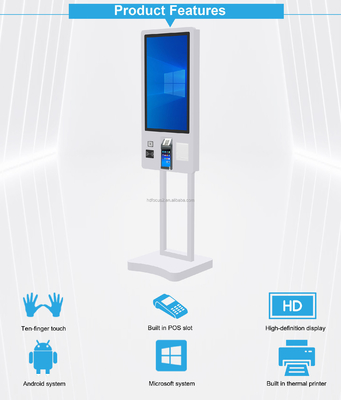

Main Features：

◆ High end design and finishing, perfect for self-ordering and queuing
application;
◆ Flexible design, can be wall mounted or floor stand installation;
◆ Built in POS slot, can fix POS machine for payment purpose;
◆ Full HD brand new original panel;
◆ Sensitive 10 points capacitive touch;
◆ Built in 80mm thermal printer, 58mm thermal printer(optional);
◆ Built in sensitive QR scanner(optional);
◆ Built in 2M/5M/8M pixels camera at the top middle(optional);
◆ Built in NFC module(optional);

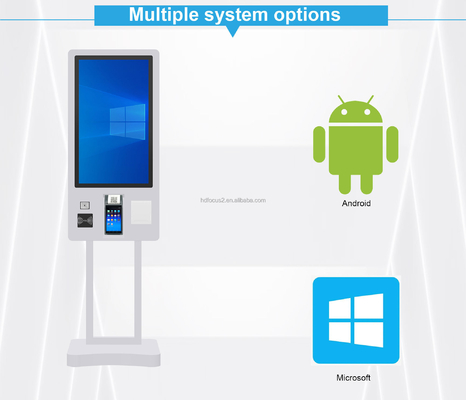

◆ Windows 7, 8.1 and 10 trial version or Android OS (optional);
◆ Support Ethernet, WIFI network, and can customize 3/4G function;
◆ Industrial level design, support 24/7 working;
◆ CE, RoHS, TELEC and PSE certified
◆ ISO9001 and ISO14000 certified;

Display
Display Panel	21.5” /27”/32”/43”	65 inch	75 inch	86 inch
Display Ratio	16:9	3840×2160	3840×2160	3840×2160
Color	16.77M colors
Display Area	476.064(H)*267.786(V)mm
Resolution	1920*1080
Brightness	350cd/m2
Contrast	≥ 1000:1
View Angle	178°left and right, up and down
Points Distance	0.282(H)*0.282(V)mm
	Performance
CPU	Quad core Cortex-A55, RK3568
Frequency	2.0GHz
RAM	DDR4- 2G (can customize 4G)
Storage	EMMC 16G (can expand )
GPU	ARM G52 2EE
Graphic Card	Integrated graphics card
Network Card	10/100M adaptive card
WIFI&Bluetooth	Support WIFI and Bluetooth 4.0
4G Function	Can customize 4G function(optional)
OS	Android OS 11.0 and above
	Interface
USB	USB 2.01, USB 3.01
HDMI Output	HDMI*1
TF Card Slot	TF card slot*1
SIM Card Slot	SIM card slot*1
Headphone Audio Output	Headphone Audio Output*1
Network	RJ45*1
WIFI	WIFI*1, support 802.11 b/g/n
	Printer
Type	Thermal printer 58mm
Print Width	384 dots
Resolution	203DPI
Print Speed	100mm/s(max)
Paper Width	58 ± 0.5 mm
Paper Thickness	56~105μm
Interface Type	RS232 serial interface
Life Time	1 million times
	QR Scanner
Sensor	CMOS
Resolution	640*480
Communicate Port	TTL232, RS232, USB(HID,CDC) available (need choose one of them, standard is USB port)
Format	2D, 1D
Accuracy	5 mil
Lighting	White LED
View Angle	Horizontal: 68°, Portrait: 51°
	NFC
Support Card	MIFARE One ( M1 ), S50 , S70 , NTAG2 the X- the X- series, Fudan F08 , the I - COD E-the X- and other types of label; the same time, also supports second-generation ID card, the city a cartoon, bank identification card
Voltage Range	3.3 ~ 5.0 V
Supporting Agreement	ISO1569 3 , ISO14443-A , ISO14443- B , ISO 18092
Working Current	30 mA~ 130 mA
Operating Temperature	-20~85 ℃
Wave Special Rate	115200 bps
Reading Distance	20mm~60mm (depending on the tag and antenna)
See Door Dog	Built-in hardware watchdog to prevent crashes
	Capacitive Touch
Touch Type	Capacitive touch, G+G
Points	10 points
Glass Cover	Tempered glass cover
Response Time	Less than 5ms
Resolution	32767 * 32767
Position Accuracy	±1.5mm
Communication	USB2.0
Life Time	Over 80,000,000 touches
	Others
Format	PAL, NTSC
Color	Black, White, can customize
Gross Weight	30KG
Voltage	220-240V 50/60Hz
Power	≤ 60W
Working Temperature	0－ 40 ℃
